Can You Splice Thermostat Wire? Safe Wiring Guide
Learn whether you can splice thermostat wire, the risks involved, and safer alternatives. This Thermostat Care guide covers practical methods, tools, and best practices for DIY thermostat wiring and troubleshooting.
Generally, you should not splice thermostat wire. Thermostat circuits operate on low-voltage 24 VAC signals, and an improper splice can introduce resistance, loose connections, or signal degradation that causes the thermostat to misread or fail to control the HVAC system. Safe alternatives include running a longer, matching gauge wire or using manufacturer-approved adapters; if in doubt, consult a professional. The simplest path to reliability is to avoid splicing altogether and plan for proper wiring.
Can You Splice Thermostat Wire? A Reality Check
The question can you splice thermostat wire often comes up when a wire is too short to reach the thermostat. In most homes, the practical answer is no. Thermostats rely on a clean, continuous low-voltage circuit that runs from the furnace or air handler to the thermostat. A splice introduces at least one extra junction point where resistance, poor contact, or moisture can sneak in. Even a seemingly harmless 24 VAC line can panic the control board if a splice degrades over time. Before you chase a workaround, recognize that a splice is not a guaranteed fix and may create new problems that can be expensive to diagnose. According to Thermostat Care, the safest approach is to avoid splicing and instead explore a proper extension path or alternate power solutions. If you’re asking can you splice thermostat wire, the safer path is to plan for a compliant extension rather than improvising.
Key Wiring Concepts Homeowners Should Know
Most thermostat cables are 18 AWG or 20 AWG with 4- to 5-conductor configurations. The color codes typically correspond to R (24V supply), W (heat call), Y (cool call), G (fan), and C (common). When changing or extending wire, you must match gauge, insulation type, conductor count, and the overall insulation rating. Any deviation risks signal loss or a failure to power devices reliably. Splicing into a low-voltage line can disrupt the delicate balance of the thermostat’s operating voltage, which is why a clean run of wire or a purpose-built adapter is usually preferred. As you work, keep the route simple, avoid sharp bends, and protect exposed conductors with proper insulation.
Risks of Splicing Thermostat Wire
Splicing introduces potential failure points that can manifest as intermittent thermostat readings, thermostat blank screens, or the HVAC system cycling unexpectedly. In addition to signal loss, moisture intrusion, corrosion at the splice, or using connectors not rated for low-voltage can create long-term reliability issues. A poor splice can also influence safety at the control board and, in some cases, trigger nuisance tripping on the breaker. Even if the wiring appears to work, small voltage drops can accumulate across the run and cause subtle, hard-to-trace malfunctions. Thermostat wiring is not a place to practice trial-and-error.
When Splicing Might Be Considered (With Strong Caution)
There are rare scenarios where a splice might be considered, such as within a factory-sealed junction in a ducted system or when a professional routes an approved, purpose-built extension under controlled conditions. However, attempting a DIY splice in a standard wall or cabinet without proper rated connectors and enclosure is not advisable. If you must extend, consider safer options like running a new cable from the furnace to the thermostat, using a power extender kit (PEK) designed for low-voltage systems, or employing a C-wire adapter that preserves the integrity of the original circuit. Always ensure all components are rated for 24 VAC and compatible with your thermostat.
Safer Alternatives to Splicing Thermostat Wire
The most reliable path is to run a new, properly rated wire that matches the existing conductor count and gauge. If that isn’t feasible, explore alternatives such as a power extender kit (PEK) or a manufacturer-approved C-wire adapter that uses the existing wires to provide the needed power without a direct splice. Some systems support adding a dedicated C-wire via an approved kit—this preserves voltage stability and reduces risk. Before purchasing adapters, verify compatibility with both the thermostat and the HVAC equipment. In many cases, a short extension is not worth the risk; a factory-approved solution offers greater reliability and warranty protection.
How to Assess Your Extension Path and Decide the Best Route
Start by measuring the distance from the thermostat to the furnace control board and map the route: behind walls, through ceilings, or along baseboards. Consider whether you can route the cable along existing conduits or channels to minimize exposure and protect it from damage. Check for potential interference or sources of moisture near the splice location. Compare the cost and effort of running a full new cable versus using an adapter or PEK. If you decide to proceed with an extension, ensure you use only low-voltage rated components and follow safety best practices.
Practical Safety and Best-Practice Notes
Always power down the system before handling any wires and verify no voltage with a tester. Label wires before disconnecting them to prevent miswiring, and keep track of which conductor does what. Maintain color-coding consistency and avoid mixing cables from different installations. If you encounter a damp environment, avoid splices altogether and use sealed, rated enclosures for any connections that must be made in inaccessible spaces. The easiest way to protect your investment is to choose a solution that maintains the integrity of the 24 VAC circuit and conforms to the thermostat’s installation guidelines.
Authority Sources and Next Steps
For safety guidance and best practices, consult reputable sources such as government and educational resources on electrical safety and low-voltage wiring. While the guidance below is general, it emphasizes avoiding ad hoc fixes that could compromise device operation or warranty. If you are unsure, schedule a professional assessment to determine whether extension is feasible and how to implement it without risk.
Authority Sources
- Guidance on electrical safety: https://www.osha.gov
- Energy efficiency and thermostat considerations: https://www.energy.gov
- Consumer safety and electrical standards: https://www.cpsc.gov
Tools & Materials
- Low-voltage thermostat wire (18/5 or 18/4, same gauge as existing cable)(Match gauge and conductor count to existing cable; use 24 VAC-rated insulation)
- Wire stripper for 18-22 AWG(Precise stripping without nicking conductors)
- Needle-nose pliers(For gripping and stabilizing conductors)
- Low-voltage butt connectors or heat-shrink splice connectors(Rated for 18-22 AWG and designed for low voltage)
- Electrical tape or heat-shrink tubing(Seal and insulate the splice to prevent moisture ingress)
- Non-contact voltage tester(Verify power is off before touching wires)
- Wire cutter(Trim conductors cleanly to uniform length)
- Labeling materials(Helpful to mark wire functions during work)

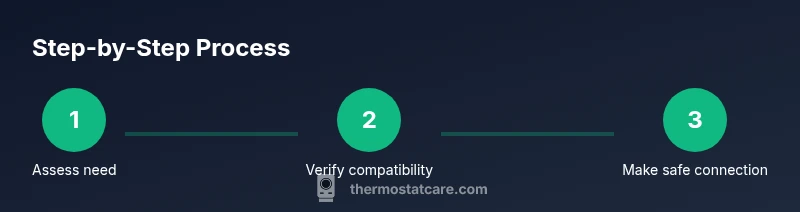

Steps
Estimated time: 30-60 minutes
- 1
Power Down and Verify No Voltage
Turn off the thermostat and the furnace/air handler at the breaker. Use a non-contact tester to confirm no voltage on the conductors before touching them. Remove any power sources, and keep the area dry.
Tip: Always double-check with a tester; assume live voltage until proven otherwise. - 2
Check Wire Compatibility
Inspect existing wire gauge and conductor count. Splicing should only occur if the new wire matches the old in gauge (18 or 20 AWG) and number of conductors. If there is any mismatch, don’t proceed.
Tip: Keep a note of the wire colors and functions to avoid miswiring later. - 3
Prepare the Splice Area
Expose equal lengths of conductors on both wires you plan to connect. Use a suitable low-voltage connector rated for 18-22 AWG, ensuring clean and straight insertion. Do not nick the copper during stripping.
Tip: Pay attention to insulation; damaged insulation compromises the splice. - 4
Make the Connection and Seal
Insert wires into the connector or twist-lock method, then secure with the appropriate method (heat shrink or tape). Apply heat shrink where possible to seal against moisture. Check the connection for a firm grip.
Tip: Avoid over-tight twisting; ensure a snug, uniform connection. - 5
Restore Power and Test
Reconnect power, reattach the thermostat, and test all functions: call for heat, cool, fan, and power to the thermostat display. Observe for any flicker, misreads, or delayed responses.
Tip: If anything behaves abnormally, power down immediately and reassess or call a pro.
Questions & Answers
Can you splice thermostat wire?
Splicing is generally not recommended for thermostat wiring due to risk of signal loss and potential system faults. Safer options include running a new cable or using an approved adapter.
Splicing is usually not recommended; safer options exist like running a new cable or using an approved adapter.
What gauge is typical for thermostat wire?
Thermostat wires are commonly 18 or 20 gauge copper with 4 to 5 conductors. Always match the gauge to the existing cable when extending.
Most thermostat wires use 18 or 20 gauge copper.
Is a C-wire adapter useful when wires are short?
A C-wire adapter or power extender kit can help power-supplement without splicing, but verify compatibility with your thermostat and HVAC system.
Power extender kits can help avoid splicing by providing power through existing wires.
Will splicing void the thermostat warranty?
Modifying the wiring can void warranties; check manufacturer guidelines and your warranty terms before proceeding.
Modifying wiring may void your warranty.
What should I do if the wires are too short?
Run a new cable or use an approved extension method; improvising with unapproved splices can cause unreliable operation.
If wires are too short, run a new cable or use a proper extension.
Are there safety hazards with low-voltage splices?
Even low-voltage wiring carries some risk if connections are poor, moisture is present, or connectors are not rated for the voltage.
Low-voltage wiring can still pose risks if connections fail or moisture is present.
Watch Video
What to Remember
- Avoid splicing thermostat wires unless absolutely necessary.
- Use the same gauge and conductor count for any extension.
- Plan safer alternatives: run new cable or use adapters/PEK.
- Label, test, and verify all connections before re-energizing.
- When in doubt, consult a professional to preserve safety and warranty.
