How Is a Thermostat Wired? A Practical Wiring Guide
Learn how is a thermostat wired with a practical, step-by-step approach. This guide covers 24V low-voltage basics, safety checks, common wiring configurations, and a clear DIY workflow for typical HVAC setups.
How is a thermostat wired? This quick guide answers that question and gives you a safe, practical path for low-voltage (24V) wiring. You’ll learn the essential steps, common wiring configurations, and what to check before you connect any wires. By following these steps, homeowners can confidently prepare for a thermostat replacement or upgrade.
Understanding how is a thermostat wired
How is a thermostat wired is a question many homeowners ask when planning a replacement or upgrade. In most homes, the thermostat controls a low-voltage parallel circuit that triggers the furnace, air conditioner, or heat pump through a set of standard wires. The key to a successful wiring job is understanding the function of each wire and connecting it to the correct terminal on the thermostat base. According to Thermostat Care, the safest and most reliable approach starts with identifying the system type and voltage before touching any wires. If you see a bundle of labeled wires, take a photo for reference and slowly trace each conductor to its terminal on the furnace control board. Common wire colors offer clues, but never assume; verify with a voltmeter and the equipment’s documentation. By knowing the basics of how is a thermostat wired, you’ll reduce the risk of miswiring, which can leave your system unresponsive or cause thermostat display issues.
The five standard low-voltage wires you’ll likely encounter are R (or R and Rc/Rh in some setups), C, W, Y, and G. R supplies the 24V power from the furnace; C provides the common return; W is for heat; Y is for cooling; and G controls the fan. Some thermostats use separate Rc and Rh terminals bridged with a jumper; if yours does, ensure the jumper remains intact or is removed only when the manufacturer instructs. Understanding these roles helps you map wires accurately during installation and troubleshooting. When wiring is done correctly, you’ll see reliable temperature control, fewer false readings, and smoother system startup. For safest results, always turn off power at both the furnace and the breaker before touching any wires and consult the documentation for your specific HVAC equipment.
Thermostat Care emphasizes that proper wiring starts with a clean plan. Before you begin, confirm whether your system uses 24V low voltage or line voltage. If you’re unsure, consult a professional or reference your furnace’s wiring diagram to avoid dangerous mistakes. With a clear plan and the right tools, wiring a thermostat becomes a straightforward task rather than a guesswork gamble.
note null
Tools & Materials
- Digital multimeter (for verifying voltages)(Set to AC and confirm 24V between R and C to verify a powered 24V system)
- Non-contact voltage tester(Useful to quickly verify the circuit is de-energized before touching wires)
- Screwdriver set (Phillips and flat-head)(Phillips #2 is common for wall plates and thermostat terminals)
- Wire stripper/crimper(Trim wires cleanly to 1/4 inch for a solid terminal connection)
- Electrical tape or wire nuts(Secure and insulate wire connections safely)
- Labeling supplies (masking tape, marker)(Label wires as you remove them to avoid mix-ups)
- Replacement thermostat mounting plate and screws(Ensure compatibility with your thermostat model)
- Safety glasses(Protect eyes when working near components or vents)
- Notes for C-wire adapters (if needed)(Some homes lack a C-wire; plan for a compatible adapter or alternative)

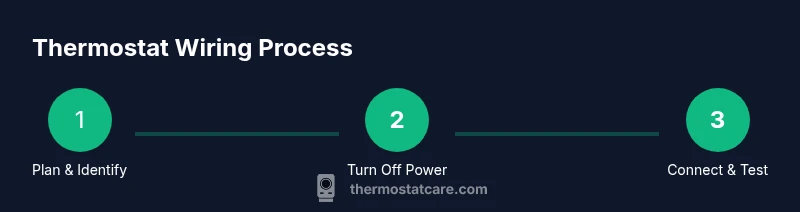

Steps
Estimated time: 60-90 minutes
- 1
Power down all power to the system
Begin by turning off power at the furnace and at the main electrical panel to prevent any live current from reaching the control board. Use a non-contact tester to confirm the absence of voltage before you touch wires. This step is crucial for your safety and to avoid damage to components.
Tip: Always double-check at both the furnace and the panel before touching wires. - 2
Remove the thermostat cover and note wire positions
Gently remove the thermostat cover and mounting plate. Take clear photos or draw a quick diagram of which wire is connected to each terminal on the old thermostat. This reference will guide you when wiring the new unit.
Tip: Label each wire with the terminal tag it was connected to (R, C, W, Y, G, etc.). - 3
Identify the system type and available wires
Check the furnace control board or system documentation to confirm it’s a 24V low-voltage setup and which wires are present. Common letters are R, C, W, Y, G; some homes may have an extra E for emergency heat or O/B for heat pumps.
Tip: If you see many unlabelled wires, stop and re-check the diagram before proceeding. - 4
Test voltage and prepare wires for connection
With the power still off, test the R and C wires with your multimeter to confirm a 24V potential when power is reapplied. Prepare the wires by trimming, cleaning the conductor end, and ensuring they’re free of corrosion.
Tip: Keep wire ends clean for a solid terminal bite. - 5
Connect wires to the new thermostat according to the diagram
Match each wire to the corresponding terminal on the new thermostat: R to R (or Rc/Rh as specified), W to W, Y to Y, G to G, and C to C if available. If your thermostat requires a jumper between Rc and Rh, leave it only if the manufacturer recommends it.
Tip: Avoid cross-connecting wires and never force a wire into a wrong terminal. - 6
Mount the thermostat and restore power
Attach the thermostat base to the wall, secure with screws, and reattach the cover. Restore power at the furnace and the panel, then power on the thermostat to confirm it powers up.
Tip: If the screen stays blank, re-check the C-wire and terminal connections. - 7
Test heating, cooling, and fan functions
Set the thermostat to heat, cool, and fan modes to verify that each function triggers the appropriate equipment. Observe the response time and listen for smooth operation without error codes.
Tip: Document any codes displayed and refer to the manual for troubleshooting. - 8
Final verification and cleanup
Confirm all settings, label any remaining wires, and tidy the area. If you notice intermittent operation, re-check connections at both ends and consult the product documentation.
Tip: Keep the original wiring photo for future reference.
Questions & Answers
Is wiring a thermostat dangerous?
Wiring a thermostat can be safe if you follow proper de-energizing procedures and use the right tools. The main risk is electrical shock or accidentally damaging HVAC components. Always power down at the furnace and breaker before starting, and test that voltage is off.
Wiring a thermostat can be safe if you power down and use the right tools. Always verify the power is off before touching wires.
Do I actually have 24V in my thermostat wiring?
Most modern residential thermostats use 24V low-voltage wiring. You can verify by checking the voltage between R and C with a multimeter when power is on, and then powering down for any work. If there’s no 24V, your system might use a different configuration.
Most homes use 24V wiring. Check with a meter to be sure, and if you’re unsure, consult a professional.
Can I reuse old wires for a new thermostat?
Yes, you can reuse wires if they are in good condition and long enough to reach the new thermostat terminals. If a wire is damaged or too short, replace it or add a new wire run. Always test each wire for continuity if you’re unsure.
Wires can be reused if they’re in good shape and reach the new thermostat. If not, replace or add wires.
What about wireless or smart thermostats?
Wireless or smart thermostats still rely on a compatible 24V wiring setup. You’ll typically reuse R, C, W, Y, and G, and you may gain additional features like Wi‑Fi and scheduling. Check compatibility with your HVAC equipment and power requirements.
Smart thermostats work with the same 24V wiring in most cases. Just check compatibility first.
What should I do if the thermostat display is blank after wiring?
A blank display usually means power isn’t reaching the thermostat. Recheck the R and C connections, ensure the jumper between Rc and Rh is correctly set, and confirm the furnace fuse or breaker isn’t tripped.
If the display is blank, re-check R and C connections and the breaker. The problem is usually a power issue.
Watch Video
What to Remember
- Power off before touching wires.
- Label wires and map terminals precisely.
- Verify system voltage and compatibility before wiring.
- Connect wires to matching terminals on the new thermostat.
- Test all functions after installation and seek help if needed.
