How to Put a Thermostat in a Fridge: A DIY Guide
Learn how to install a compatible thermostat inside a refrigerator with safety tips, step-by-step instructions, and troubleshooting. Thermostat Care offers expert guidance for DIY homeowners seeking precise cooling control.
Goal: learn to put thermostat in fridge with safe, practical steps. You’ll need a compatible thermostat, basic tools, and adherence to electrical safety. Start by confirming your fridge supports aftermarket control, power down the unit, and mount the device away from moving parts. Follow manufacturer instructions and test incrementally to avoid overcooling or damage.
Understanding fridge thermostats and the rationale for aftermarket control
According to Thermostat Care, a fridge’s built-in thermostat regulates the compressor by monitoring cabinet temperature and cycling the compressor on and off to maintain the set point. Some homeowners seek tighter control, integration with smart-home ecosystems, or experimental setups that push beyond stock capabilities. If you’re looking for how to put thermostat in fridge, this guide explains the rationale, the limits of aftermarket devices, and how to pursue a safe, measured upgrade rather than a risky hack. Remember, the goal is precise cooling while preserving food safety and appliance longevity. Throughout this section you’ll see practical notes tied to real-world fridge behavior, including when to skip an aftermarket thermostat and rely on standard fridge maintenance instead.
The fridge operates by responding to temperature sensed near the evaporator coils. Any external thermostat must be compatible with your unit’s electrical characteristics and should not bypass built-in safety features. When done correctly, aftermarket control can reduce temperature fluctuations and improve energy efficiency, especially in environments with variable ambient temperatures. Thermostat Care emphasizes designing around the fridge’s thermal mass and airflow so that the sensor represents the actual box temperature rather than the door or vents. This helps avoid misreadings that cause compressor cycling errors and food-safe temperature deviations.
In practice, you’ll decide early whether a simple digital thermostat with an internal sensor is enough or if you need a more advanced system with remote sensors and relays. This balance—between control granularity, safety, and ease of installation—will guide the rest of the process. The introductory steps you take here set the tone for a safe, reliable retrofit rather than a quick, potentially unsafe modification.
–
Tools & Materials
- Digital thermostat suitable for refrigeration or a line-voltage appliance thermostat(Must be rated for fridge/compressor duty and compatible with the fridge voltage (commonly 110-120V in North America))
- Non-contact voltage tester(Used to verify power is fully disconnected before handling wiring)
- Screwdrivers (Phillips and flathead)(For mounting enclosures and access panels)
- Wire strippers/cisers(For clean, safe wire ends and connections)
- Electrical tape and heat-shrink tubing(For insulating and securing connections)
- Insulated gloves(Personal protection when working near electrical components)
- Cable clamps or adhesive-backed cable organizers(To route wires neatly and away from moisture or moving parts)
- Digital thermometer with fridge-probe(To verify actual temperatures after installation)

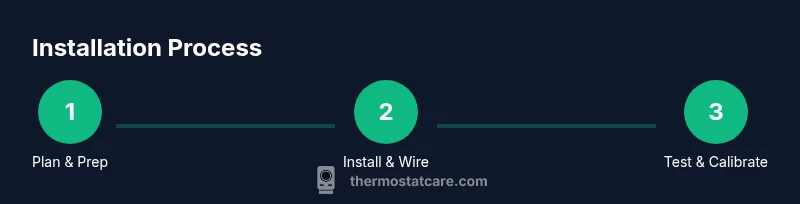

Steps
Estimated time: 2-4 hours
- 1
Power down and verify no voltage
Unplug the fridge and, if accessible, switch off the dedicated circuit breaker. Use the non-contact tester to confirm there is no residual voltage on any wires you’ll touch. This step prevents electric shock and protects internal components.
Tip: Double-check the wall outlet and the fridge’s power cord; never assume a switch disables the appliance’s internal power. - 2
Identify a safe mounting location
Choose a spot inside the fridge cabinet that remains dry, away from the evaporator coils, fan paths, and compressor access. The sensor should reflect the air temperature inside the box, not near doors or vents where readings diverge.
Tip: Avoid placing the thermostat near moisture-prone areas or any potential leak paths. - 3
Mount the thermostat base and sensor
Secure the thermostat’s enclosure to a stable interior surface using screws or strong adhesive, ensuring the sensor is positioned to sample the cabinet air. Leave space for wiring and avoid crush points.
Tip: Test fit before final mounting to confirm sensor exposure and cable clearance. - 4
Route power and sensor cables safely
Run power and sensor cables along existing creases or behind shelves, using clamps to prevent movement. Keep all connections away from the evaporator and any moving parts. Seal or shield exposed wires to prevent moisture ingress.
Tip: Use grommets or insulating sleeves where wires pass through metal panels. - 5
Connect wiring to the fridge circuit
Follow the thermostat’s wiring diagram precisely. For line-voltage thermostats, insert the device in series with the compressor’s supply line. For low-voltage models, connect through a relay or contactor as specified by the unit. Ensure all splices are insulated.
Tip: If you’re unsure about line-voltage wiring, consult a licensed electrician or the thermostat manufacturer. - 6
Configure and calibrate the thermostat
Set the desired temperature range and verify sensor placement. Calibrate according to the manufacturer’s guidelines, allowing time for the system to stabilize before testing readings. Record settings for future reference.
Tip: Use a trusted digital thermometer to cross-check fridge temperature against the thermostat readings. - 7
Test operation and take initial measurements
Plug the fridge back in and observe compressor cycling over 15–30 minutes. Compare actual cabinet temperatures with the thermostat’s set points, adjusting as needed for stability.
Tip: Document any fluctuations and adjust sensor placement if readings drift. - 8
Document, secure, and monitor
Take photos of the wiring layout, label wires, and store settings in a safe place. Schedule periodic checks to ensure ongoing accuracy and safety, especially if doors or shelves are moved.
Tip: Regular checks help catch drifting readings before they affect food safety.
Questions & Answers
Can I install any thermostat in a fridge?
Not all thermostats are suitable for refrigeration. Choose a unit rated for refrigeration duty and capable of long-term operation at low temperatures. If in doubt, consult the manufacturer’s compatibility charts.
Not all thermostats work in refrigerators. Pick one designed for fridge use and follow the compatibility guide.
Is it safe to modify a fridge with an aftermarket thermostat?
It can be safe when done correctly with proper electrical precautions and proper equipment. Always power down first and use devices rated for refrigeration. If you are unsure, seek professional assistance.
Safety first: power down, use the right thermostat, and consider a professional if unsure.
Do I need an electrician for this install?
Many installations rely on line-voltage wiring and proper relays. If you’re uncomfortable with electrical work, especially in tight spaces, hire a licensed electrician.
You may want an electrician if high-voltage wiring is involved.
What temperature should the fridge be set to after installation?
Aim for a safe middle ground between 1–4°C (34–39°F) depending on your contents. Calibrate using a reliable fridge thermometer and adjust to stabilize readings.
Aiming for about 34–39°F is typical, but measure and adjust for your food safety needs.
Will this void my fridge warranty?
Modifications can affect warranties. Check the manufacturer’s terms and consider working with a DIY-competent professional to minimize risk.
Modifications may affect warranties; check terms before proceeding.
What if my fridge stops cooling after installation?
If cooling stops, disconnect the additional thermostat, restore original wiring, and test the fridge. A fault could indicate wiring errors or sensor placement issues.
If cooling stops after install, revert to original setup and test again to identify issues.
Watch Video
What to Remember
- Verify compatibility before starting
- Follow safety protocols for electrical work
- Calibrate readings with a reliable thermometer
- Document changes for future maintenance
