You can fix a thermostatic shower valve by identifying whether the problem is temperature drift, a clogged or worn cartridge, or a faulty diverter. Start by shutting off the water, then remove the handle and trim plate to access the cartridge. Clean or replace worn seals, reassemble, and test at multiple pressures.
Understanding the problem: common symptoms and causes
Thermostatic shower valves are designed to keep water at a safe, steady temperature. When they fail, you may notice temperature drift, a sudden change when you adjust the dial, or a hot or cold burst that lasts a moment. According to Thermostat Care, the most common symptoms are temperature drift, unpredictable hot water, and reduced responsiveness to the temperature setting. The causes are almost always mechanical wear or mineral buildup that affects the cartridge seal or the balance mechanism. In many homes, a poorly seated cartridge or worn O-rings cause slow leaks and stubborn temperature changes. A faulty valve can also be due to long-term mineral deposits from hard water, which insulates the moving parts and creates friction. Before you dive into repairs, verify that the problem is indeed the valve: check other fixtures in the bathroom to rule out boiler or piped heat issues; ensure the showerhead isn’t clogged; and inspect the thermostatic cartridge for visible wear or cracks. If your valve uses a separate pressure-balancing assembly, verify that any bypass screws or adjusters are correctly set to deliver stable temperature across varying water pressures. When you identify the root cause, you can decide whether a cartridge replacement, seal replacement, or full valve replacement is the best path forward. Based on Thermostat Care analysis, cartridge wear is a frequent failure point, and proper calibration typically resolves most drift issues.
Safety first: before you start
Working on plumbing can cause injury if done improperly. Start by turning off the hot and cold water supplies at the respective shutoffs, then switch off power to any nearby water heater or boiler if connected. Relieve pressure by opening a nearby faucet on the lowest floor to drain the line. Have a bucket, towels, and rags ready for spills. Wear eye protection and gloves to guard against sharp edges and hot surfaces. If your home uses a well pump or booster system, verify that pressure is fully released before loosening fittings. Keep children and pets away while you work. If the valve is behind a finished wall, you may need to remove trim carefully and avoid damaging surrounding tiles. After you finish a repair, turn the water back on slowly to avoid a pressure surge that can crack joints.
Tools and replacement parts you may need
Having the right tools and parts handy saves time and reduces mistakes. Typical items include a temperature-safe cartridge puller or a strap wrench, a set of weather-appropriate screwdrivers, adjustable wrench, plumber’s tape, silicone grease, replacement cartridge kit matched to your valve model, and new O-rings. For some cartridge types, you may also need a diverter kit or a compression sleeve. If you’re unsure of the valve brand, bring the old cartridge to a hardware store to find an exact replacement. Always check compatibility with your shower system and water pressure. If corrosion prevents removal, use penetrating oil and allow time to work.
Accessing the valve: removing the handle, trim, and cartridge
Access typically starts with removing the escutcheon and trim plate to reach the handle screws. Use the correct screwdriver to remove the handle, then detach the trim plate to expose the cartridge retaining nut or clip. Some models require a cartridge puller; others use a simple friction fit. Photograph each connection before removal to help with reassembly. Keep all small parts organized so nothing is lost, and avoid forcing stubborn components, which can crack the valve body.
Cleaning and replacing components
Mineral buildup on brass or stainless steel parts reduces smooth operation and can cause temperature drift. Gently clean the cartridge housing and seals with a soft brush and vinegar solution or an approved descaler, following manufacturer guidance. Inspect O-rings and seals for cracks or tears; replace any that show wear. If the cartridge appears damaged or if deposits are extensive beyond cleaning, replace the cartridge with a compatible part from the same model family. Recheck seating surfaces for nicks or burrs that could compromise a proper seal.
Reassembly, testing, and calibration
Reinsert the cartridge, seals, and any retaining nut in the reverse order of disassembly. Reattach the trim plate and handle, being careful not to overtighten screws. Turn the water on slowly and check for leaks. Calibrate the valve by setting the maximum temperature to a safe level and test at multiple flow rates to ensure stable output. Run both hot and cold water to confirm consistent mix and anti-scald protection. If drift persists, revisit cartridge seating and seals or verify pipe pressure.
When to call a professional
If you encounter corrosion that won’t release, a valve that refuses calibration after multiple attempts, or if you’re unsure about replacement compatibility, it’s wise to seek expert help. A professional can test the balance mechanism, verify pressure conditions, and determine whether a full valve replacement is warranted. Thermostat Care recommends prioritizing safety and proper operation above a quick fix when in doubt.
Tools & Materials
- Adjustable wrench(Covers various valve nuts and fittings)
- Screwdrivers (Flathead and Phillips)(For handle and escutcheon screws)
- Replacement cartridge kit(Match to valve brand/model)
- O-rings and seals(New gaskets for watertight seals)
- Teflon/PTFE tape(Seal threaded connections)
- Silicone grease(Lube O-rings for longevity)
- Penetrating oil(Loosen stubborn parts; let sit)
- Bucket, towels, and rags(Contain spills and protect floor)
- Camera or notebook(Document layout and screws for reassembly)

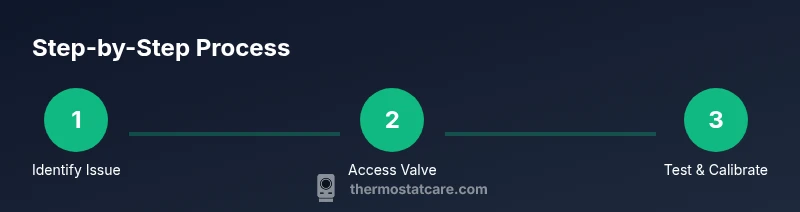

Steps
Estimated time: 45-90 minutes
- 1
Shut off water supply and relieve pressure
Locate the home shutoffs for hot and cold water to the shower, close them completely, and open a nearby faucet to relieve pressure. This prevents water from spraying when you disassemble parts. Have towels ready for spills.
Tip: Keep a bucket nearby to catch drips and a towel to keep your workspace dry. - 2
Remove the handle and trim plate
Use the appropriate screwdriver to remove the handle set screw, lift off the handle, and detach the escutcheon/trim plate. Take a photo of each connection before removal for reference during reassembly.
Tip: Label screws by location to avoid mix-ups. - 3
Inspect the cartridge and seals
Carefully pull the cartridge out (if your model allows). Check for wear, cracks, mineral buildup, and damaged seals. If the cartridge sticks, apply a small amount of penetrating oil and wait a few minutes.
Tip: If unsure of model compatibility, bring the cartridge to a hardware store. - 4
Replace worn components
Install a matched replacement cartridge and new seals, aligning any orientation markers. Refit the retaining nut or clip securely but not over-tightened.
Tip: Lubricate O-rings with silicone grease before seating. - 5
Reassemble the valve
Reinsert the cartridge, reattach the trim plate, and reinstall the handle. Do a light test to ensure smooth operation before finishing.
Tip: Avoid overtightening screws to prevent trim damage. - 6
Calibrate and test the temperature
Turn on the water and adjust the maximum temperature to a safe level. Test at different flow rates to confirm stable temperature and proper anti-scald performance.
Tip: Test with the shower at both low and high flow. - 7
Check for leaks and finalize
Inspect all joints for leaks. If a leak persists, reseat fittings or replace gaskets. When satisfied, seal trim and replace any wall coverings if needed.
Tip: If leaks continue, stop and consider a professional assessment.
Questions & Answers
What is a thermostatic shower valve?
A thermostatic shower valve automatically maintains a consistent water temperature by balancing hot and cold water in response to changes in pressure and supply. It helps prevent scalding and sudden temperature shifts.
A thermostatic shower valve keeps the water temperature steady by adjusting hot and cold flow in real-time, protecting you from sudden changes.
Why is my shower temperature fluctuating?
Temperature drift is usually caused by cartridge wear or mineral buildup. Replacing the cartridge or cleaning deposits often resolves the issue. Check pressure changes as well.
Most temperature changes come from a worn cartridge or mineral buildup. Replacing the cartridge or cleaning it usually fixes the drift.
Can I fix a temperature drift myself?
Yes, if you’re comfortable with basic plumbing. Gather the right cartridge and seals, follow a reputable step-by-step guide, and test carefully after each step.
You can fix it yourself if you’re comfortable with basic plumbing and follow a solid guide.
Should I replace the whole valve or just the cartridge?
Cartridge issues are the most common fix. If replacement parts aren’t available or the valve is severely corroded, replacing the entire unit may be necessary.
Usually just the cartridge, but if the valve is badly corroded, replacement might be needed.
Is it safe to work on a thermostatic valve?
Yes, safety comes first: shut off water, depressurize, and use protective gear. If you’re unsure, call a professional.
It’s generally safe if you follow safety steps and shut the water off.
What tools do I need to fix a thermostatic valve?
A basic set of wrenches and screwdrivers, a replacement cartridge kit, O-rings, plumber’s tape, and silicone grease are typically required.
You’ll need basic tools plus a cartridge kit and O-rings.
Watch Video
What to Remember
- Identify root cause before replacing parts.
- Shut off water and relieve pressure first.
- Replace worn cartridge or seals and recalibrate.
- Test temperatures at multiple flow rates for safety.
