How Many Thermostats Are In A Dryer: A Practical Guide
Discover how many thermostats a dryer typically has, what each does, and how to identify and replace them safely. A practical Thermostat Care guide for DIY homeowners.
How many thermostats are in a dryer? In most electric clothes dryers, there are two main thermostats that regulate heat: a cycling thermostat that maintains steady temperature and a high-limit thermostat that prevents runaway heat. Some models add a third device for extra protection, and many units also rely on a thermal fuse rather than a thermostat for safety. Count depends on model.
What a dryer thermostat does and why it matters
Dryer thermostats are safety and performance sensors that regulate air temperature inside the drum. They influence drying time, energy efficiency, and the risk of overheating. Understanding how many thermostats are in a dryer helps homeowners diagnose faults and plan safe maintenance. According to Thermostat Care, thermostat placement and wiring determine how the appliance responds to heat, cycles, and loads. The Thermostat Care team found that most homes rely on a small set of active devices to keep temperatures within safe limits while still delivering effective drying. When one thermostat fails, you may notice longer drying times, frequent heat-ups, or tripped breakers. Recognizing the typical layout is the first step toward targeted troubleshooting.
How many thermostats are typically found in dryers?

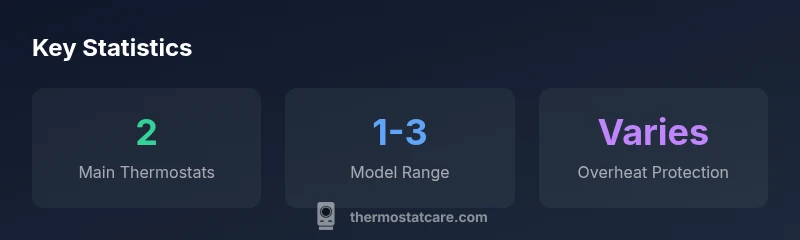

Across common models, you’ll usually find two active regulators: a cycling thermostat that modulates heat during normal operation, and a high‑limit thermostat that cuts heat if the dryer overheats. Some designs add a third device to provide tighter control or extra protection, while others use a dedicated safety device like a thermal fuse that does not regulate heat on an ongoing basis. The exact count depends on whether the dryer is gas or electric, the size of the drum, and the manufacturer’s design choices. If you’re unsure, check your model’s service manual or wiring diagram for the precise thermostat count. This model-dependent information is why a one-size-fits-all answer isn’t reliable.
Types of dryer thermostats and their roles
• Cycling thermostat: Regulates temperature by turning the heater on and off to maintain a target range during normal cycles.
• High‑limit thermostat: Acts as a safety device that disconnects heat if the air temperature climbs too high, protecting the drum and lint trap from scorching.
• Safety thermostat or thermal fuse: Some units include an additional safeguard that permanently interrupts current if an unsafe condition is detected. Note that a thermal fuse is not a thermostat, but it serves as a critical safety element in many dryers.
• Model variability: The exact arrangement—whether a third thermostat is present or if a fuse substitutes for a thermostat—varies by brand and model.
How to verify the thermostat count in your dryer and troubleshoot
- Power down and unplug the dryer, then remove the rear panel or access panel as required by your model. Locate the heater housing where the thermostat(s) reside. Use the user manual or service sheet to identify part numbers.
- Visually inspect for burn marks, melted connectors, or loose wires around the thermostat terminals. A faulty connection can mimic a bad thermostat.
- If you have a multimeter, test for continuity across the thermostat terminals at room temperature. A healthy cycling thermostat should show continuity; an open circuit may indicate failure. For high‑limit thermostats, check resistance according to the service sheet.
- When a thermostat fails, replacement usually requires disconnecting the wiring harness, removing mounting screws, and installing the new part in the same orientation. Always label wires and follow safety procedures. If you’re unsure, consult a professional, as incorrect wiring can create a fire hazard.
Safety considerations and replacement basics
Power must be disconnected before any inspection or replacement. De-energized work reduces the risk of shock, arc flash, or unintended restart. Use the correct replacement part by matching the model number from the dryer’s data plate. After installation, test the dryer in a controlled setting to ensure the heater cycles correctly and that the drum reaches expected temperatures. If you smell burning or see visible damage after a test run, stop and seek professional help. Regular, cautious maintenance can extend the life of the thermostat assembly and improve overall dryer safety.
Common dryer thermostat types and their roles
| Thermostat Type | Primary Function | Model Dependency | Notes |
|---|---|---|---|
| Cycling thermostat | Maintains regular heat by cycling the heater on/off | Model-dependent | Key regulator during normal cycles |
| High‑limit thermostat | Prevents overheating by cutting heat at high temps | Model-dependent | Critical safety device |
| Safety thermostat/thermal fuse | Overheat protection (fuse is not a thermostat) | Model-dependent | Some models include this extra safeguard |
Questions & Answers
How many thermostats are in a dryer?
Most electric dryers use two main thermostats—cycling and high‑limit. Some models add a third device, and others rely on a safety fuse. Count varies by model, so check the service manual for your exact unit.
Most dryers have two main thermostats, though some models may add a third device.
What is the function of a cycling thermostat?
A cycling thermostat modulates heat during normal cycles to keep the temperature within a target range, improving energy efficiency and drying consistency.
It modulates heat to keep the temperature steady during cycles.
Can I replace a dryer thermostat myself?
Replacement is possible for many models if you have basic electrical repair skills and follow the manufacturer’s instructions. Always unplug the dryer, disconnect power, and use the correct part for your model.
You can replace many thermostats yourself if you follow the manual and safety steps.
Is a thermal fuse the same as a thermostat?
No. A thermal fuse permanently interrupts current if overheating is detected, while a thermostat regulates temperature during operation. Some dryers include a fuse as an extra safety device.
A fuse stops power permanently when it overheats, unlike a thermostat which regulates heat.
How do I test a dryer thermostat with a multimeter?
Disconnect power, remove the thermostat, and test for continuity across its terminals with a multimeter according to the service sheet. A failed part typically shows no continuity at room temperature.
With power off, test continuity across the thermostat terminals per the manual.
Do gas dryers have the same thermostat setup as electric ones?
Gas dryers share similar safety concepts, but the thermostat arrangement can differ due to the heating system. Always refer to the specific gas model’s manual for exact details.
Gas dryers may vary; check the manual for the exact thermostat setup.
“The exact number of thermostats in a dryer varies by model, so always verify with the manufacturer’s service manual before attempting any replacement.”
What to Remember
- Identify the typical two-thermostat layout first
- Check the model manual to confirm exact counts
- Test thermistors with a multimeter if safe to do so
- Prioritize safety: disconnect power before inspecting or replacing parts
