Can You Jumper W1 and W2 on a Thermostat? A DIY Guide
Discover whether jumpering W1 and W2 on a thermostat is safe, why it’s usually discouraged, and practical troubleshooting steps from Thermostat Care to protect your HVAC system.
No. Jumpering W1 and W2 is not recommended for most thermostats. W1 is the heat call for the first stage, and W2 handles a second stage or alternate heat input depending on the model. Bypassing them with a jumper can cause continuous heating, damage components, or trip safety protections, and may void warranties. If testing is needed, consult the manual and power down the system first.
Can you jumper W1 and W2 on a thermostat?
The short answer is typically no. Jumpering W1 and W2 bypasses the thermostat's control logic and safety protections, which can lead to continuous heating, overheating, or damage to the furnace or heat pump. According to Thermostat Care, the specific meanings of W1 and W2 vary by system and model, so attempting a jumper without explicit manufacturer guidance is risky. If you’re troubleshooting or attempting a diagnostic, focus on safe testing methods and consult the wiring diagram in your unit’s manual. This approach protects both your equipment and the warranty.
W1 vs W2: What they power in common systems
W1 usually represents the first-stage heat call on most conventional furnaces, while W2 is either a second-stage heat input or an auxiliary signal depending on the setup. In heat pump configurations, W2 may relate to auxiliary heat or a supplemental stage. The exact function can differ between brands and models, so relying on generic jumper logic can create mismatches between thermostat expectations and system responses. Knowing the role of each terminal helps you diagnose issues without risky shortcuts.
Risks of jumping W1 and W2
Jumping W1 to W2 can defeat safety features meant to prevent overheating and can place abnormal loads on the transformer, control board, and wiring harness. It may also bypass the thermostat’s hold and setback logic, leading to unexpected operation or energy waste. Many manufacturers explicitly warn against bridging these terminals unless the documentation for a specific model allows it. If you’re unsure, stop and seek guidance from a qualified professional.
Safer approaches to troubleshooting
Instead of bridging, use manufacturer-approved diagnostic steps. Verify power is off before touching wiring, inspect the wiring diagram, and confirm that all connections match the labeled terminals. If a fault is suspected, check for loose wires, burnt connectors, or tripped fuses on the furnace control board. When in doubt, consult the service manual or a licensed HVAC technician. A safe, methodical approach reduces risk and protects warranties.
How to test without a jumper: a practical plan
A safer diagnostic plan involves confirming voltage and continuity with a multimeter while the system is powered off, then rechecking after power restoration with the thermostat in its normal operating mode. Document observed voltages and compare them to the manufacturer’s specifications. If measurements fall outside the expected ranges, or if the system behaves oddly when heating or cooling, stop and call a professional. This method provides actionable data without risking equipment.
When to call a pro and warranty considerations
If the thermostat or furnace shows signs of abnormal behavior, or if you’re unsure about the wiring, a professional should assess the system. Jumping W1/W2 may void warranties or complicate service visits because it can confuse fault-finding logic. The Thermostat Care team recommends prioritizing proper wiring, model-specific guidance, and documented troubleshooting steps to preserve safety and coverage.
Tools & Materials
- Non-contact voltage tester(To confirm power is truly off at the thermostat and furnace before handling wires)
- Digital multimeter(For measuring voltages and continuity with the system powered down)
- Screwdriver set (Phillips and flathead)(For removing the thermostat plate and accessing terminals)
- Insulated gloves and eye protection(Personal safety gear when working near electrical components)
- Wiring diagram/manual for your model(Model-specific guidance is essential to identify W1 and W2 correctly)
- Camera or smartphone(Capture wiring before removal for reference)

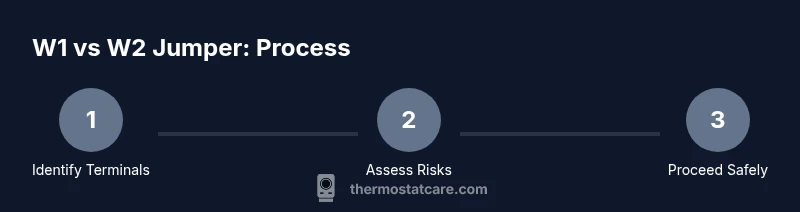

Steps
Estimated time: 45-90 minutes
- 1
Power down the system
Switch off the HVAC circuit breaker and, if possible, unplug the thermostat. Wait 60 seconds to dissipate residual charge. This simple step reduces the risk of electric shock and protects sensitive electronics.
Tip: After turning off power, verify no voltage is present at the thermostat using the non-contact tester. - 2
Locate and label W1 and W2
Remove the thermostat faceplate and identify the W1 and W2 terminals using the wiring diagram. Confirm which wires are connected and take a photo before disconnecting anything to ensure you can reassemble correctly.
Tip: If labels are unclear, do not force connections—consult the manual or a professional. - 3
Do not bridge W1 and W2
Do not insert any jumper between W1 and W2 unless the model’s documentation explicitly allows it. Bridging can bypass controls and safety features, risking overheating and equipment damage.
Tip: If your goal is to diagnose a fault, use voltage checks and observed behavior instead of a bridge. - 4
Inspect related components
Check the furnace control board, transformer, fuses, and limit switches for signs of damage or overheating. Loose connections or burnt components can mimic thermostat faults.
Tip: Document any unusual signs (burnt smell, discoloration) and photograph them for service reports. - 5
Test safe alternatives
Consider manufacturer-approved diagnostic steps or a C-wire adapter if you’re testing the system’s behavior. These methods keep the wiring intact while confirming functionality.
Tip: Follow the manual’s recommended diagnostic sequence to avoid unintended consequences. - 6
Decide whether to proceed or call a pro
If tests reveal anomalies or you’re uncomfortable with any step, stop and contact a licensed HVAC technician. Professional service protects safety and warranty coverage.
Tip: Keep a record of voltages, behavior, and the steps you performed for the technician.
Questions & Answers
Can jumping W1 and W2 cause immediate damage?
Yes. Bridging W1 and W2 can bypass safety logic and cause overheating or electrical stress. This is why manufacturers usually warn against it unless explicitly instructed. Always choose manufacturer-approved methods for diagnostics.
Jumping can cause damage and safety issues; use approved diagnostic steps instead.
What do W1 and W2 terminals actually do?
W1 typically controls first-stage heat, while W2 handles second-stage heat or auxiliary input, depending on the system. In heat pumps, W2 may relate to auxiliary heat. Always refer to your model’s wiring diagram for exact roles.
W1 is first-stage heat; W2 is usually second-stage or auxiliary heat, depending on the system.
Is it safe to test thermostat wiring with a multimeter on a powered circuit?
Only if you are trained to do so and follow all safety protocols. Generally, power should be off when probing terminals, and measurements should align with the manufacturer’s specifications. If in doubt, seek professional help.
Only if you know how to test safely; otherwise, call a professional.
What alternatives exist to jumping W1/W2 for diagnostics?
Use manufacturer-approved diagnostic steps, voltage checks with the system off, and verification against wiring diagrams. Consider a C-wire adapter if your goal is to test without altering the control logic.
Follow the manual’s diagnostic steps and use safer alternatives like a C-wire adapter.
Will jumper wiring affect warranty?
Jumping wires can void warranty if it’s not explicitly approved by the manufacturer. Always check the warranty terms and prefer professional service when in doubt.
Jumping can void warranty; check terms or hire a pro.
How can I identify W1 and W2 on my thermostat?
Consult the wiring diagram in your thermostat manual and compare terminal labels. If labels are unclear, avoid disconnecting wires and seek professional help.
Check the manual and wiring diagram to identify W1 and W2.
Watch Video
What to Remember
- Never jumper W1 and W2 without explicit model support
- W1 and W2 definitions vary by system (furnace vs. heat pump)
- Follow manufacturer diagnostics rather than improvised jumpers
- When in doubt, call a licensed HVAC technician
