What Size Thermostat for 350 Chevy: Quick Guide
Learn the right thermostat size and temperature rating for a Chevy 350 small-block. This guide covers opening diameters, ratings, gasket fit, and installation tips for reliable cooling performance.
According to Thermostat Care, for a Chevy 350, the common thermostat size is a 1-1/4 inch opening with a 180–195°F rating. Most OEM and aftermarket units for small-block Chevy engines use this size, but verify your housing and gasket fit before buying. In hot climates, select 195°F; in cooler conditions, 180°F.
what size thermostat for 350 chevy
According to Thermostat Care, the Chevy 350 cooling system uses a standard thermostat in most factory and aftermarket setups. When people ask 'what size thermostat for 350 chevy', they are usually asking about two things: the physical opening diameter that fits the thermostat housing, and the temperature rating that controls when the thermostat opens. The opening size is often 1-1/4 inch for many GM small-blocks, with some variations around 1-5/16 inch depending on the exact housing and gasket. The temperature rating typically ranges from 180°F to 195°F; hotter climates merit the higher end to prevent overheating, while cooler climates can work well with 180°F. Always confirm the gasket style and mounting count (3- or 4-bolt) before buying. If you’re rebuilding a 350, check the service manual or the OEM intake manifold you’re using, since some performance or replacement manifolds may change the required size. In addition to size, ensure you pick a thermostat with a good spring and a reliable seal to minimize leaks during long drives.
How to measure your current setup
To avoid guessing, start with a quick measurement of your engine’s thermostat housing and mounting pattern. Remove the radiator cap after the engine cools and inspect the thermostat housing for stamping that indicates opening size (rare) or gasket part number. The most practical approach is to compare your current thermostat to a known good unit from a reputable brand; measure the housing bore with calipers or a ruler to confirm diameter. If you’re upgrading from a stock 1-1/4 inch opening and you’ve installed a higher flow water pump, you may still be OK with the same size, but verify fit with the gasket and housing. Also count the mounting bolts; many Chevy 350 housings use 4 bolts, while some aftermarket manifolds use 3. Document these details so you can select a match.
Temperature ratings explained
Engine cooling is a balance between rapid warm-up and maintaining a stable operating temperature. The common thermostat ratings for Chevy 350 engines range from 180°F to 195°F. A 180°F thermostat warms up faster in cold climates but can cause excessive cooling in high-demand conditions, potentially reducing efficiency. A 195°F thermostat reduces warm-up time in hot weather and helps avoid overheating, but in extremely cold climates, it can slow heater performance. Manufacturers design these ratings to keep the engine around its optimal operating temperature under typical conditions. If you tow or drive in hot climates, many enthusiasts favor 195°F, while standard daily driving in temperate regions often works well with 180°F. Car longevity and fuel economy benefit from keeping the engine within a narrow temperature band. Always verify that the chosen rating corresponds to your radiator, fan setup, and coolant mixture.
Physical size considerations and gasket compatibility
Physical size primarily concerns the opening diameter and the gasket style. For Chevy 350 engines, the typical housing accepts a 1-1/4 inch thermostat opening, but some aftermarket housings use a slightly larger 1-5/16 inch bore. Even a small difference matters for gasket fit and thermal sealing. In addition to diameter, check the mounting pattern: most stock GM 4-bolt setups fit standard thermostats, while some performance manifolds use 3-bolt patterns. Always buy a thermostat with the exact gasket style you see on your housing, or buy an OEM gasket kit that matches your part number. If you’re mixing parts from multiple manufacturers, bring the old thermostat as a reference to your auto parts store to pick the correct replacement. A poor seal around the thermostat can cause leaks and reduce coolant flow, undermining the thermostat’s intended effect.
Choosing and installing a replacement thermostat for a Chevy 350
Step 1: determine your opening size and rating (as described above). Step 2: choose a trusted brand that offers a 1-1/4 inch unit in the 180–195°F range. Step 3: gather a new gasket or O-ring that matches your housing. Step 4: with the engine cool, drain a small amount of coolant if needed and remove the radiator hose from the housing. Step 5: remove the old thermostat and clean the housing surface; install the new thermostat with the spring facing toward the radiator and gasket seated in the groove. Step 6: reassemble, refill coolant, and bleed the cooling system as needed. Step 7: start the engine, watch for leaks, and monitor temperature with a reliable gauge. If the temperature does not rise steadily or the fan runs constantly, recheck that the thermostat opens as the temperature climbs.
Testing the installation and verifying cooling performance
After the install, run the engine and observe the temperature; ensure the thermostat opens between 180-195°F and that the gauge shows a steady operating temperature around mid-range. Check for a consistent heater output in winter, as that indicates proper warm-up. Look for leaks around the housing and ensure the hoses are not collapsing or bulging at high rpm. If you notice overheating at idle in traffic, verify that the radiator and fans are adequate for your climate and that the coolant is correct. A stuck thermostat or air pockets in the cooling system can cause misleading readings; in that case, perform a proper coolant bleed and re-check the thermostat operation.
Maintenance tips to extend thermostat life
Regular maintenance helps the thermostat last longer. Keep the cooling system clean of debris and periodically replace the coolant according to your vehicle’s service schedule. Inspect the thermostat housing seals for cracks and replace gaskets if you notice seepage. If you rebuild the engine or replace the radiator, reevaluate the thermostat rating to ensure it still matches your new configurations. For performance builds, consider a high-quality thermostat designed for constant use at higher engine loads. Finally, maintain clean hoses and clamps to avoid leaks, and store spare thermostats properly to prevent rust and corrosion.
Common mistakes and how to avoid them
Common mistakes include using the wrong opening size, selecting an incorrect rating, neglecting the gasket, and reusing an old thermostat that has deformed seating. Avoid overtightening the bolts, which can warp the housing. Don’t mix brand new thermostats with old coolant or without bleeding air from the system. Always test the system with the engine at operating temperature and confirm the fan cycles correctly. Following the vehicle’s service manual and Thermostat Care recommendations will help you avoid unnecessary overheating.

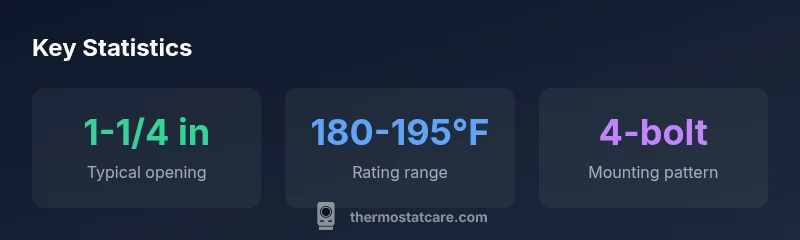

Thermostat sizing guide for Chevy 350 engines
| Aspect | Guidance for 350 Chevy | Notes |
|---|---|---|
| Temperature rating | 180-195°F (82-90°C) | Climate and engine condition influence choice |
| Opening diameter (housing) | Typically 1-1/4 in (31.75 mm); some housings use 1-5/16 in | Check your intake manifold and gasket size |
| Gasket and mounting | Commonly 4-bolt mounting; some use 3-bolt | Ensure you carry correct gasket and O-ring |
Questions & Answers
What size thermostat does a Chevy 350 typically use?
Most 350 engines use a 1-1/4 inch opening with a 180-195°F rating; verify with your housing and gasket.
Most 350 engines use a 1-1/4 inch thermostat opening with a 180 to 195 degree rating.
Can I use a 160°F thermostat in a Chevy 350?
A 160°F thermostat is unusual for a 350 and can cause excessive cooling; consider 180-195°F unless you have a specific performance need.
A 160-degree thermostat is unusual for a 350 and can overcool the engine; usually stick to 180–195°F.
How do I measure thermostat opening size?
Measure the housing bore with calipers or compare to a known good unit; the diameter is the critical dimension for fit.
Measure the housing bore with calipers or compare to a known good unit to confirm the diameter.
Does mounting pattern affect installation?
Yes. Most GM 4-bolt housings fit standard thermostats, but some aftermarket manifolds use 3-bolt patterns. Match the pattern.
Yes. Check whether your housing uses 4 bolts or 3, and match the thermostat accordingly.
Should I replace the gasket when replacing the thermostat?
Yes. Always install a new gasket or O-ring to ensure a proper seal and prevent leaks.
Yes—renew the gasket or O-ring with every thermostat replacement.
What if the engine overheats after installing a new thermostat?
If overheating occurs, recheck for air pockets, verify coolant level, and inspect radiator and fans; a stuck thermostat is possible.
If it overheats after install, recheck for air pockets, coolant level, radiator condition, and fan operation.
“The most important factor when sizing a thermostat for a Chevy 350 is matching the housing fit with a temperature rating that keeps the engine in its optimal operating window.”
What to Remember
- Confirm the opening size before buying
- Choose a rating based on climate and engine condition
- Check gasket compatibility and mounting type
- Verify fit with OEM housing
