Where is Thermostat on AC Unit? Find It Fast
Find and identify the thermostat for your central AC, locate it quickly, and troubleshoot common placement issues with expert tips from Thermostat Care.
Find the central AC thermostat by looking on an interior wall inside the home, usually in the living area. For most systems, the thermostat sits on a wall-mounted panel that controls the indoor unit; some homes use a smart thermostat mounted higher on a wall or in a hallway. Before inspection, power down the HVAC circuit to ensure safety and accurate testing.
where is thermostat on ac unit
According to Thermostat Care, the thermostat that controls your central AC is typically mounted on an interior wall in a living area. The Thermostat Care team found that homeowners often overlook the indoor device, assuming it’s placed near the outdoor unit or inside mechanical rooms. In this guide, we’ll outline the typical locations and quick checks to confirm you’ve found the right device. Remember to power off the circuit before handling wiring. This simple precaution prevents shocks and protects the system’s logic from false readings. By understanding the basic layout of indoor components, you can avoid chasing phantom locations and focus your search where it matters most.
Common wall locations for most homes
Most houses with central air place the thermostat on a main living space wall, often near the entry, dining room, or hallway leading to bedrooms. If your home uses an open floor plan, the thermostat is usually on a wall that’s easily visible from common areas rather than tucked behind furniture. In apartments, the thermostat is frequently on a corridor wall near the unit’s service closet. If you’re unsure, check along interior walls that face the living area or near return vents, which are good indicators of the conditioned space.
Differences between systems: central AC, heat pumps, and mini-splits
Traditional central air setups use one wall-mounted thermostat that commands the indoor air handler. Heat pump systems may have a thermostat connected to a heat pump controller on the same wall or a separate zone controller. Mini-split systems often have a dedicated, wall-mounted remote or panel attached to the interior unit itself. In all cases, the thermostat is positioned to sense ambient room temperature and send instructions to the main equipment.
How to identify the thermostat wiring and model when you find it
Once you locate the device, remove the faceplate carefully to inspect the wiring. Look for a bundle of labeled wires connected to a terminal strip or plug; common wires include R (power), C (common), W (heat), Y (cool), and G (fan). If you see a battery-powered panel without visible wiring, it’s likely a wireless thermostat or a smart model that still communicates with the system. Note the model number for future reference.
What to do if you can’t find the thermostat (hidden or missing)
If you truly can’t locate a thermostat on interior walls, search the mechanical room, basement, or garage for the indoor air handler or furnace where wiring leads from the unit. Some homes place thermostats in utility rooms or closets with the air handler. In newer homes, the thermostat may be mounted on a wall in the corridor between living and sleeping areas. If still missing, consult your HVAC manual or contact a qualified technician.
Safety-first: power off and protective steps
Always shut off the HVAC circuit breaker before removing any faceplates or touching wiring. Use a non-contact voltage tester if you’re unsure whether a live wire is present. Keep kids and pets away from the work area and avoid handling exposed conductor ends. If you’re uncomfortable at any point, stop and seek professional help. This approach minimizes the risk of short circuits or electric shock while you locate the device.
Replacing or upgrading: when and why to consider a new thermostat
If your current thermostat is older or non-functional, upgrading to a modern programmable or smart model can improve efficiency and comfort. Ensure the new unit is compatible with your HVAC system (voltage, wiring, and C-wire availability). In many cases, a new thermostat requires only a common wire and a brief setup. Thermostat Care suggests verifying compatibility with a quick online check or a call to a local pro.
Special cases: zone systems and multiple thermostats
Some homes use multiple thermostats to manage different zones or floors. In such setups, each thermostat controls a dedicated zone with dampers inside the ductwork. If you see more than one thermostat, identify which zone each one serves and ensure the settings don’t conflict. For smart zoning, you may need a central hub or compatible app that coordinates across devices.

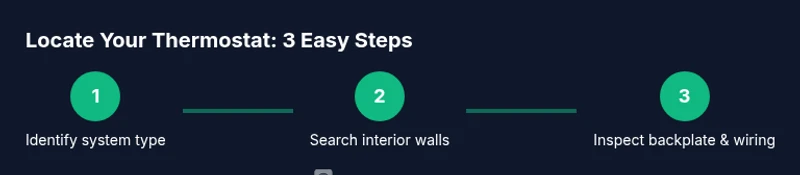

Quick checks you can perform to confirm you found the right device
Take a few simple steps: 1) attempt to power on the unit and observe a response, 2) verify the wiring behind the faceplate matches standard color codes, 3) press the test button if available and listen for equipment activity, and 4) cross-reference the location with the home’s service closet or furnace area. If you still doubt, consult your system diagram or a licensed technician.
Tools & Materials
- null(No special tools required for locating the thermostat; use common sense safety precautions)
Steps
Estimated time: 30-60 minutes
- 1
Identify the system type
Start by confirming whether you have a central AC with a single wall thermostat, a heat pump, or a multi-zone system. This will guide where to look first and what kind of thermostat you should expect.
Tip: Check the outdoor unit for model labels or the indoor air handler for a control board diagram. - 2
Look on interior walls in living areas
Search prominent interior walls in the main living spaces, hallways near bedrooms, or near common entry points. These are the most common placements for the thermostat in home layouts.
Tip: Avoid mounting on exterior walls where temperature fluctuations skew readings. - 3
Inspect behind the faceplate
Carefully remove the thermostat’s faceplate to reveal the wiring and mounting plate. Look for terminal labels like R, C, W, Y, and G to confirm it’s a thermostat.
Tip: If wires are hidden or the panel is locked, use the user manual for removal instructions. - 4
Check for a wireless or smart model
If there are no visible wires, the device may be a wireless thermostat or smart model. Look for a battery compartment or a Wi-Fi symbol on the unit.
Tip: Smart thermostats still connect to the HVAC system; determine compatibility before upgrading. - 5
Verify wiring compatibility
Match the wire colors with standard terminals (R, C, W, Y, G). Note any non-standard wires and consult the manual if needed.
Tip: Take a photo of the wiring before disconnecting anything. - 6
Test power and response
Restore power and observe whether the thermostat communicates with the HVAC unit. If the system won’t respond, shut off power again and review wiring.
Tip: If there’s no response, there may be a tripped breaker or a faulty connection. - 7
Decide on upgrade or replacement
If the thermostat is old or non-functional, consider an upgrade. Ensure compatibility and professional installation if needed.
Tip: Check for energy-saving features like programmable schedules or remote monitoring.
Questions & Answers
Where is the thermostat typically located in a standard home AC system?
In most homes with central AC, the thermostat is mounted on an interior wall in the living area or a central hallway. If there isn’t one, check near the air handler or furnace. For smart systems, the device may be battery-powered or part of a linked app.
Look on an interior wall in the living area or central hallway; many homes also place thermostats near the air handler. If you have a smart system, the unit may be wireless.
Can there be multiple thermostats in a house?
Yes, some homes use zoned systems with multiple thermostats to control different floors or rooms. Each thermostat operates its own zone and coordinates with dampers and a central controller.
Some homes have several thermostats for different zones. Each controls its own area and should be coordinated for efficiency.
What should I do if I can’t find the thermostat?
Search common indoor spaces first, then inspect the mechanical room, basement, or closet housing the air handler or furnace. If you still can’t locate it, check the home’s service diagram or contact a professional.
If you can’t find it, check near the air handler or furnace and look for the service diagram. When in doubt, call a pro.
Is a smart thermostat different in terms of placement?
Placement principles are similar for smart thermostats: interior wall, away from heat sources, and within reach. The difference lies in wiring requirements and app setup.
Smart thermostats sit on a wall just like traditional ones, but you’ll connect them to Wi-Fi and apps for control.
Should I replace an old thermostat if it still works?
Consider upgrading if the old thermostat is inaccurate, lacks programming, or is incompatible with your HVAC. A newer model can improve efficiency and comfort.
If it’s inaccurate or missing features, upgrading can save energy and improve control.
Watch Video
What to Remember
- Identify whether you have a central or zone system before searching.
- Most thermostats mount on interior walls in living areas, not outdoors.
- Use the backplate wiring as your confirmation of the device.
- Upgrade to a modern thermostat only after verifying compatibility with your HVAC.
