What Size Are Thermostat Housing Bolts?
Discover the typical bolt sizes used for thermostat housings, how to identify metric vs imperial bolts, and practical steps for sizing and replacement in DIY thermostat troubleshooting.
There is no universal size for thermostat housing bolts. Most modern cars use metric bolts, commonly range from M4–M6 in diameter, with occasional M8 for larger housings. Always check your vehicle’s service manual or the old bolt to confirm thread size and pitch before replacing.
Why bolt size matters for thermostat housings
Bolt size matters because the wrong diameter, pitch, or length can compromise the seal and sealing surface, leading to coolant leaks and overheating. The thermostat housing sits under engine pressure, and even a small mismatch can cause cross-threading or warping of the housing. The Thermostat Care Team emphasizes that there is no universal bolt for all makes and models, so identifying the exact size for your vehicle is essential. Start by inspecting the bolts you removed or the original hardware and measure diameter and thread pitch. If you cannot measure safely, consult your vehicle’s service manual or contact the dealer for the correct specification. Always use new bolts when replacing seals, and apply a light anti-seize coating on the threads to ease future removal. Finally, torque to the manufacturer’s specification to avoid over-tightening and potential damage.
How bolt sizing is defined on thermostat housings
Bolt sizing is defined by three attributes: diameter, thread pitch, and length. In metric systems, diameters appear as M4, M5, M6, etc. The pitch determines how coarse or fine the threads engage; pitches vary by bolt series and manufacturer. Many thermostat housing bolts use standard coarse pitches, but you must verify with the service manual or the original bolt. The head style (hex vs socket) also affects tool choice. Even when two bolts look the same diameter, a different pitch can prevent proper engagement and sealing. Finally, ensure the bolts you choose are compatible with the gasket and housing material to prevent distortion and leaks.
Common sizes you’ll encounter by vehicle era
Today’s vehicles predominantly use metric bolts in the M4–M6 range for thermostat housings, with occasional M8 for higher-strength needs. Older vehicles, especially some American brands, may still use imperial sizes like 1/4-20; these are becoming rarer but exist. Always confirm using the service manual or the original hardware. If the manual is unavailable, cross-reference the thermostat housing part number or consult the dealership. When replacing, avoid assuming a size—correctly identifying the size prevents leaks, warping, and costly repairs.
How to measure bolt size safely without disassembly
If you can access the bolt, use a caliper to measure the diameter across the threads to determine the nominal size. A thread pitch gauge helps identify the pitch, while measuring the bolt length confirms how far it should thread into the housing. If you cannot access the bolt safely, refer to the vehicle service manual for the exact bolt size or contact the dealer for the correct specification. Always verify metric vs imperial and note the head type (hex vs socket) to choose the proper driver. Accurate measurement reduces the risk of cross-threading and fueling coolant leaks.
Tools and replacement tips
Prepare a small set of replacement bolts matched to the original size, plus one spare in case of cross-threading. Use a torque wrench and the appropriate driver to avoid rounding the bolt head. Apply a light coating of anti-seize on the threads to facilitate future removal, but never apply anti-seize to the sealing face. When installing, follow the manufacturer’s torque spec precisely to ensure a proper seal and avoid overtightening that can crack the housing. If the old gasket is damaged, replace it to maintain a reliable seal.
Step-by-step sizing verification for DIYers
- Verify you are looking at thermostat housing bolts, not another fastener. 2) Use a caliper to measure bolt diameter and compare to M4/M5/M6 ranges. 3) Check thread pitch with a pitch gauge or compare the bolt with known good references. 4) Measure bolt length and ensure adequate engagement without bottoming out. 5) Confirm head type and tool compatibility (hex or socket). 6) If uncertain, rely on the service manual or dealer guidance. 7) Use new bolts with correct torque settings for a reliable seal. 8) Recheck for leaks after a short run and cooling cycle.
Common mistakes and how to avoid them
Avoid assuming, mixing sizes, or reusing old bolts. Do not ignore pitch differences or cross-threading risks. Never over-tighten, as this can crack the plastic or metal housing. If the thread is damaged, replace the housing or taps may be required. Always verify with the manual and use new bolts designed for the gasket to guarantee a proper seal.
Quick-start checklist you can print
- Confirm vehicle model and year for bolt sizing guidance
- Compare diameter and pitch with metric standards (M4–M6, occasional M8)
- Check if any imperial sizes (like 1/4-20) are present and avoid mixing
- Use a torque wrench and the correct driver size
- Apply a light anti-seize on threads (not on sealing surfaces)
- Replace the gasket if visible damage is detected
- Re-torque after cooling to verify the seal
Common bolt size considerations for thermostat housings
| Aspect | Notes |
|---|---|

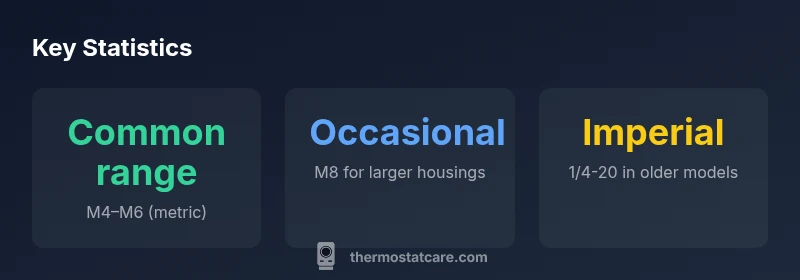

| Common metric bolt range | M4–M6; occasional M8 |
| Imperial sizes present | Occasional 1/4-20 in older vehicles |
| How to confirm size | Refer to service manual or original bolt; measure with calipers |
| Thread pitch considerations | Varies by model; verify with pitch gauge |
Questions & Answers
How do I tell if thermostat housing bolts are metric or imperial?
Check the vehicle's service manual or measure the bolt diameter and thread pitch. Metric bolts use millimeter diameters (e.g., M4, M5, M6) and inches-based measurements indicate imperial sizes. When in doubt, use the manual or consult the dealer.
Check the service manual or measure the bolt diameter and pitch to determine metric versus imperial.
Can I reuse old bolts after replacing the gasket?
It's best practice to replace thermostat housing bolts with new ones. Reusing old bolts can compromise clamping force, risk cross-threading, and lead to leaks. If you must reuse, inspect threads carefully and replace if any wear is evident.
Generally, don’t reuse bolts; inspect carefully if you must, but replacement is safer.
What if the manual doesn't list bolt size?
Measure the original bolt—diameter with calipers and pitch with a thread gauge. Cross-reference the part number for the housing, or contact the dealer to confirm the exact bolt size. Rely on verified sources rather than assumptions.
If the manual isn’t clear, measure the bolt and check with the dealer for the exact size.
Are bolt sizes the same for all thermostat housings?
No. Bolt sizes vary by vehicle make, model, and engine. Always verify against the specific car’s service information rather than assuming a universal size.
No—sizes vary by car, so always verify for your model.
What tools do I need to size thermostat bolts accurately?
You’ll need a caliper, a thread pitch gauge, possibly a bolt gauge, a torque wrench, and new replacement bolts. Having the right driver bit for the bolt head ensures a clean installation.
Caliper, pitch gauge, torque wrench, and the right driver—plus new bolts.
Where can I find the correct torque specification for these bolts?
Refer to the vehicle’s service manual or the thermostat housing kit documentation. Use the manufacturer’s torque specification to avoid leaks or damage and recheck after cooling.
Check the service manual or kit for the torque spec and re-torque after cooling.
“There is no one-size-fits-all bolt for thermostat housings. Always match the bolt size to the vehicle's service manual and use exact equivalents when replacing.”
What to Remember
- Verify bolt size against the service manual before replacement
- Modern cars use metric bolts; imperial sizes are rarer
- Measure diameter, pitch, and length to ensure proper fit
- Use new bolts and torque to spec to prevent leaks
