How big is a thermostat? A size guide for installers and homeowners

How big is a thermostat? Baseline dimensions and how to think about them

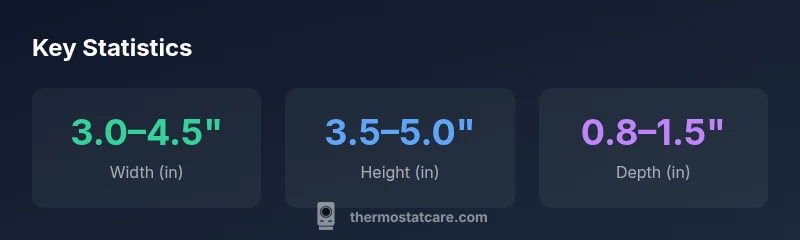

In practice, the question "how big is a thermostat" depends on form factor and installation style. The Thermostat Care team finds that most wall-mounted units fit within a compact footprint suitable for residential walls. A typical wall thermostat measures roughly 3.0–4.5 inches in width and 3.5–5.0 inches in height, with a depth of about 0.8–1.5 inches. This range covers standard rectangular devices, smart displays, and round designs that sit flush with the wall. If you are replacing an old unit, compare its outer dimensions and backplate to new options so you don’t end up with a tight fit or a visible gap.

For homeowners, this size range matters less for function than for aesthetics and accessibility. A device that is too large can look crowded on a small wall, while a very slim unit might be harder to read from across the room. In general, you want a unit that is easy to read, reaches the thermostat wiring cleanly, and leaves just enough space around the device for comfortable operation.

According to Thermostat Care, the balance between display size and mounting height influences how easy it is to view and adjust settings from common living spaces. The Thermostat Care team found that most modern thermostats favor a width and height that keep the screen legible without dominating the wall area. This is especially true for devices with touchscreens or color displays, which tend to be larger than older dial-style units.

When selecting a thermostat, always consider the wall’s clearance around the device. A standard mounting backplate around 4.5 by 5.5 inches can cover standard wiring areas while providing a neat, finished look. If you have limited wall space or a tight hallway, you may opt for a more compact rectangular model or a circular design that maximizes readability without protrusion.

sourceParagraphsInfo":null}

Common sizes by thermostat category

Modern thermostats come in several categories, and size expectations differ slightly among them. Rectangular wall-mounted models remain the most common, but there are round and compact variants designed for small niches or tight spaces. Round thermostats, for example, often measure about 2.5–3.5 inches in width and height, with a similar depth range to rectangular units. Smart thermostats, which include a larger display and additional sensors, tend to sit toward the upper end of the width and height ranges. If you are evaluating a specific model, check its technical drawing or product spec sheet for exact dimensions and backplate compatibility.

sourceParagraphsInfo":null}

Measuring for installation: a quick checklist

To ensure you choose a thermostat that fits both form and function, follow these steps: - Confirm the backplate size on the new unit. - Compare the exterior dimensions to your existing wall opening. - Check the wall cavity for clearance behind the device to accommodate wiring and any insulation. - Account for the thermostat’s height relative to nearby outlets, switches, and cabinet edges. - If possible, mount a test plate before final installation to verify fit.

sourceParagraphsInfo":null}

Backplates and wall coverage: what to expect

Backplates are often the unsung heroes of a clean thermostat install. Most backplates measure around 4.5 by 5.5 inches, designed to cover standard wiring depths and electrical boxes. Some backplates include screw holes and a little extra margin to help align the device during mounting. If your wall has texture or uneven surfaces, you may need a larger backplate or a mounting spacer to achieve a flush, professional finish. Always verify compatibility with the thermostat model you intend to install.

sourceParagraphsInfo":null}

Special cases: circular vs rectangular forms

Circular thermostats are typically found in compact living spaces or design-forward homes where space is at a premium. They commonly measure around 2.5–3.5 inches in each dimension, with a depth similar to rectangular models. Rectangular or square units tend to be larger but can offer bigger type and icons, which improves readability. Your choice should balance aesthetics with usability; bigger screens improve readability but may require more wall space than a smaller, round unit.

sourceParagraphsInfo":null}

Mounting clearance and accessibility

Clearance around the thermostat ensures comfortable operation and adequate heat transfer if the device sits near baseboard heaters or air-vent openings. Allow at least a few inches of space on all sides if possible, particularly above and to the sides of the screen. In tight installations, consider a low-profile model or a different mounting orientation to maintain clear line-of-sight for the display and avoid accidental bumps.
