Do You Need AC Wire for a Nest Thermostat? A Wiring Guide

What is a C wire and why Nest uses it

The C wire, short for common, is a 24 volt conductor that completes the circuit for your heating and cooling control equipment. In a typical HVAC setup, the R wire provides 24V power from the transformer, and the C wire returns that power to complete the circuit. The Nest thermostat relies on a steady supply of power to stay awake, wake quickly, and run features like Wi‑Fi, sensors, and fan control. If your system uses only R, W, Y, and G without a dedicated C conductor, the Nest may attempt to borrow power from other calls. Do you need ac wire for nest thermostat? The direct answer depends on your HVAC setup, and while some installations can function without a dedicated C wire, many owners find that a true common wire makes power delivery far more reliable. While this can work temporarily, it often leads to intermittent power loss, rebooting, or inaccurate readings, especially when the system cycles frequently or the compressor starts and stops. In practice, many homes have a C wire tucked behind the old thermostat, but not connected. If you’re not sure, map your wires before making changes. According to Thermostat Care Team, a proper C wire is the most reliable way to power a modern smart thermostat.

Do you need AC wire for Nest thermostat? The short answer

Do you need ac wire for Nest thermostat? The short answer is not always mandatory, but a dedicated C wire is the most reliable way to power the device. Some installations can rely on power stealing or on a Nest Power Connector, but these options depend on the equipment and how the furnace and AC are wired. If you have an unused conductor behind the wall, connecting it to C at the furnace and to C on the Nest is the simplest path to stability. If there isn’t an available conductor, you can still power the Nest by using a power extender kit or by having a professional run a new cable. In all cases, the goal is to provide a steady 24V supply so the thermostat does not pause or reboot mid cycle.

How to test your current wiring

Before changing anything, test what you actually have. Step one is safety: turn off power to the thermostat at the breaker. Remove the thermostat faceplate and gently pull the cable free enough to inspect the terminals. Look for a C terminal on the furnace control board and at the Nest base. If you have a multimeter, measure voltage between the R and C terminals when the system is idle; you should see approximately 24 VAC. If you don’t see a stable reading or there is no C terminal, you likely lack a dedicated common wire. Some systems power the thermostat by stealing a little energy during cooling or heating calls, but voltage can dip during busy cycles. If you see irregular voltage, plan to add or reconfigure the C wire. Thermostat Care notes that a reliable 24V supply is the most consistent path to stability.

Common wiring colors and terminals

Wiring color codes vary, so don’t rely on color alone. In most setups you’ll encounter R for 24V power, W for heat, Y for cool, G for fan, and C for common. The C wire is often blue or brown, but it can be any unused conductor in the bundle. Always confirm by checking the terminal labels on the furnace control board and the Nest base. If you’re replacing an old thermostat, the C terminal will typically be labeled C or COM 24V. When in doubt, refer to the furnace diagram or consult a technician. Remember that a miswired C connection can cause no power or misbehavior, so take time to map wires carefully before joining anything.

Options if you don’t have a C wire

If you do not have a dedicated C wire, you have several practical paths. First, consider a C-wire add-on accessory or a Power Connector designed to simulate a common in certain setups. Second, Nest offers a Power Extender Kit (PEK) that can be installed behind the thermostat to balance power without a full new wire run. Third, you can run a new conductor from the furnace to the thermostat, effectively adding a true C wire. Finally, in some cases a professional retrofit of the control board or wiring harness may be the most reliable long term solution. Each option has tradeoffs in cost, ease, and compatibility with your furnace and AC system.

How to wire a C wire safely

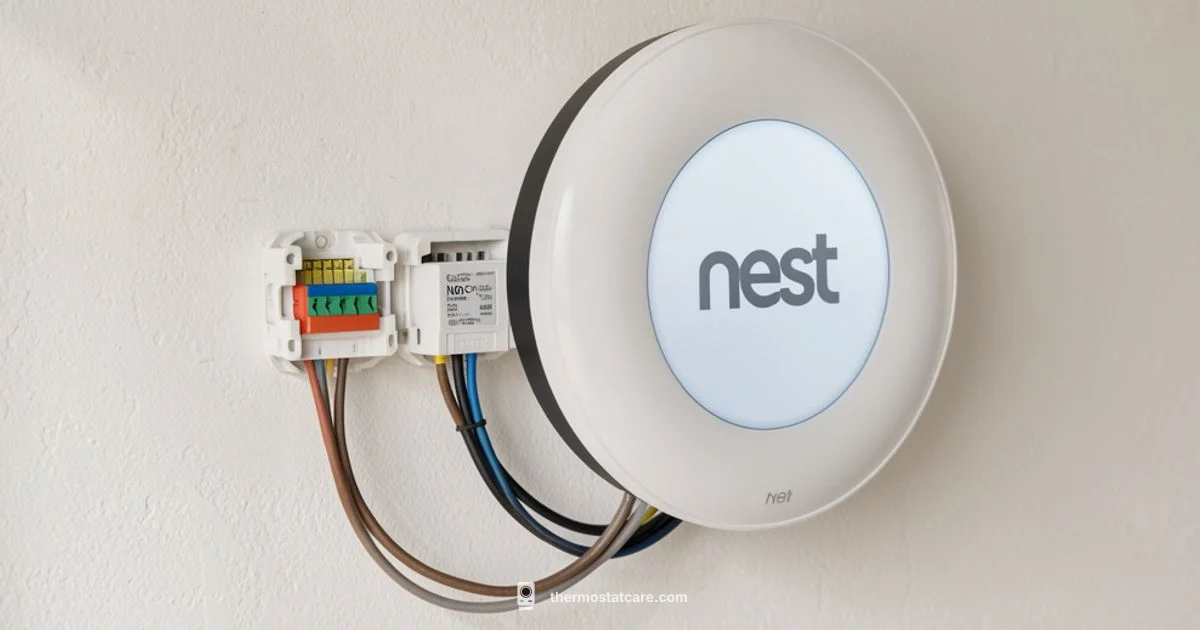

Safety first. Turn off the home’s power at the breaker before touching any wiring. If you have documentation, review it, or take photos before removing anything. At the furnace, locate the C terminal on the control board and attach the new conductor from the thermostat cable to that terminal. At the thermostat, connect the same conductor to the Nest C port. If you’re using a PEK or a power connector, follow the manufacturer’s wiring diagram exactly. After wiring, restore power and allow the Nest to boot. Use the Nest app to verify that the C and R wires are detected correctly. If you see any error, double check connections and insulation.

Troubleshooting scenarios with no C wire

When there is no C wire, the Nest may reboot during calls, its screen may dim due to battery drain, or sensors may lag. Start by testing voltage between R and the suspected C with a meter. If it’s not a steady 24 VAC, the issue is likely insufficient power rather than software. Inspect the furnace transformer rating and wire integrity. If the Nest still reports power issues after confirming clean connections, consider temporarily using a PEK or running a new wire while planning a more permanent fix. Thermostat Care recommends addressing power delivery directly for reliability, not relying on intermittent power.

Nest models and compatibility

All Nest thermostats rely on a stable 24V supply, and most models can use a C wire when available. The newer Thermostat options emphasize better power management and compatibility with common wiring. If you are unsure about whether a particular model supports your wiring configuration, consult the official Nest support pages or Thermostat Care guidance for model specific recommendations. In general, adding a C wire improves reliability across Nest models, especially in systems with variable speed or multiple stage equipment.

DIY vs professional help

Deciding between a DIY fix or professional help depends on your confidence, tools, and the system’s complexity. If you can safely access the furnace, determine the C terminal, and confirm the wiring with a meter, a careful DIY connection may be appropriate. If you’re uncomfortable working around high voltage equipment, or your furnace uses a nonstandard control board, it’s wise to call a licensed HVAC technician. A professional can confirm compatibility, ensure safe wiring, and guarantee the install meets local codes. Thermostat Care’s guidance is to prioritize a reliable 24V supply and seek professional help when uncertain.
