What is Thermostat Relay: How It Works and Troubleshooting

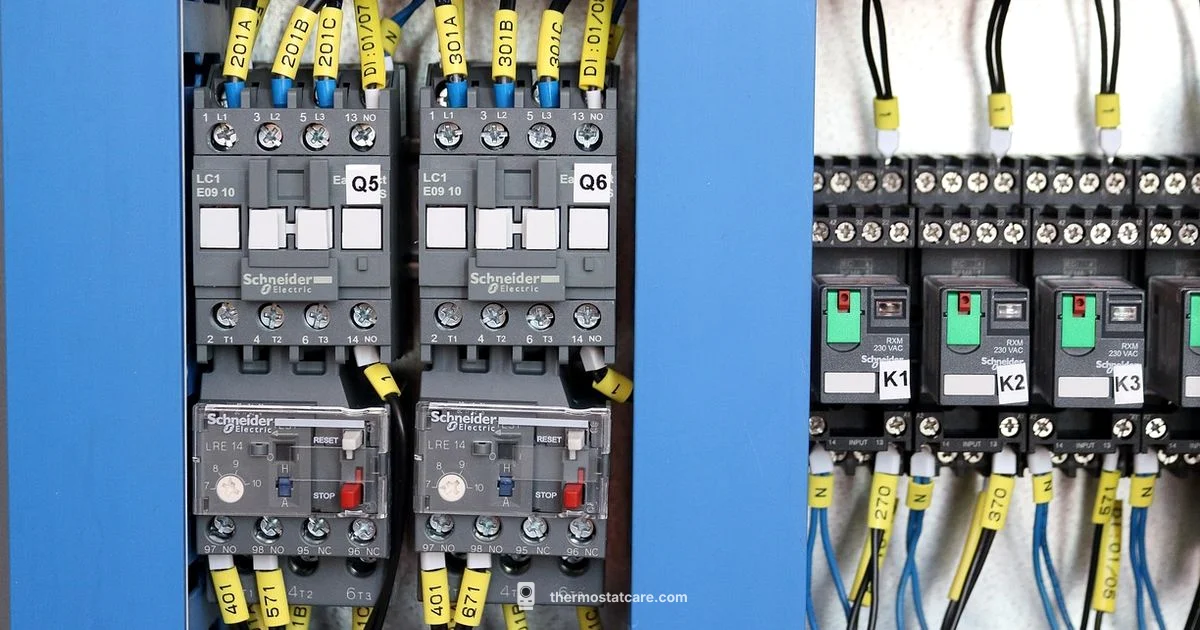

What is a thermostat relay and why it matters

According to Thermostat Care, a thermostat relay is the bridge that converts a low voltage signal from your thermostat into switching action for a high voltage heating or cooling system. In most homes, the thermostat provides a 24 volt AC control signal that tells the relay to close or open. When the relay closes, it energizes the furnace blower or the outdoor condenser contactor, allowing power to reach the heating or cooling equipment. Without this intermediary, the thermostat would need to handle dangerous high voltages directly, which is unsafe and outside the design of standard thermostats.

Key points:

• Coil voltage is typically 24 V AC; load side is usually 120/240 V AC.
• Relays provide electrical isolation between the thermostat circuit and the high voltage HVAC circuit.
• They come in various forms, but all share the same goal: reliable control of HVAC loads.

In practical terms, if your thermostat calls for heat or cool and nothing happens, the relay is one of the first components to check along with the transformer and wiring. A healthy relay ensures you have reliable control and safe operation of your system.

How a thermostat relay works in a typical HVAC circuit

A thermostat relay sits between the control side of your thermostat and the power side of your HVAC equipment. When the thermostat calls for heat or cooling, it sends a low voltage signal to the relay coil. This energizes the coil and closes the contact on the high voltage side, allowing 120 or 240 volt power to reach the furnace or air conditioner contactor. The switch then completes the circuit and the equipment runs. The relay also provides electrical isolation, so the thermostat never directly handles line voltage. In most residential systems the coil is wired to a 24 V AC transformer, while the load side switches the main power that actually runs the equipment. This separation protects both the thermostat and the user, and reduces risk of electrical shock or short circuits. Small faults in the transformer or wiring can prevent the relay from energizing even when the thermostat calls for heat or cool, so diagnosing the relay often begins with verifying the transformer and wiring.

EMR vs SSR: Two main types of thermostat relays

There are two common relay technologies used in thermostat control: electromechanical relays (EMR) and solid state relays (SSR). EMRs use a physical coil and moving contacts; they are inexpensive, robust for simple loads, and can make audible clicking when they switch. SSRs use semiconductor devices to switch loads, offering silent operation, faster switching, and higher reliability for frequent on off cycles. However, SSRs can pose heat management challenges and can be more expensive, especially for larger HVAC loads. When choosing between EMR and SSR for a thermostat relay, homeowners generally balance cost, noise, heat generation, and the type of load (inductive motors vs resistive elements). In many traditional residential systems, a standard EMR relay is more than adequate, while SSRs are favored in quieter or cycling-heavy environments.

How to identify a faulty relay

If your thermostat calls for heat or cool but nothing happens, the relay could be at fault, but it is not the only possibility. Common signs of a failing relay include a buzzing or clicking from the equipment, a dead thermostat call, or a tripped breaker linked to the HVAC circuit. A burned smell or visibly pitted contacts are also red flags. Loose or corroded wiring to the relay can mimic relay failure, so inspecting connections is essential. Before assuming the relay is bad, verify the thermostat transformer is delivering the expected voltage and that the control wiring is intact. Safety comes first: power down the system before touching electrical components.

How to test a thermostat relay safely

Testing a thermostat relay requires caution because the high voltage side of the circuit can be dangerous. Start by powering down the system at the breaker and disconnecting any lamps or devices sharing the circuit. Remove the relay cover to access the coil and contacts. Use a multimeter to measure the coil resistance and compare it to the coil specification for your unit; a coil that reads infinite resistance or zero is suspect. With the power off, test continuity across the load contacts to ensure they open and close as the coil is energized. If you cannot safely energize the coil for a functional test, replace the relay or consult a professional. Always follow manufacturer guidelines and local electrical codes when performing tests.

Common relay problems and quick fixes

Typical issues include worn contacts from arcing, coil burnout, and loose wiring. Worn contacts may cause poor switching or intermittent operation; cleaning or replacing the relay is often necessary. Coil burnout can render the relay permanently open; replacing the relay is usually required. Loose or corroded connections increase resistance and heat, which can lead to nuisance trips or failure. Quick fixes include tightening terminals, cleaning corrosion with a proper contact cleaner, and verifying the coil voltage matches the thermostat's transformer. If in doubt, replace the relay with a model rated for your HVAC load.

How to select and replace a thermostat relay

Selecting a replacement relay starts with matching the coil voltage to your thermostat transformer, typically 24 V AC in residential systems. Check the load rating to ensure the relay can handle the HVAC equipment current and voltage; this avoids overheating and premature failure. Decide between normally open and normally closed configurations based on how your system is wired. For quieter operation or heavy cycling, an SSR may be a better fit, but costs and heat dissipation must be considered. When replacing, disconnect power, remove the old relay, and install the new one with secure connections and proper strain relief. Re-test the system to confirm proper operation and safety compliance. If you are not confident, consult a licensed technician to ensure correct installation.

Maintenance and preventive care

Routine maintenance reduces unexpected failures. Periodically inspect relay connections for looseness or corrosion, and ensure the transformer and thermostat wiring are in good condition. Keep dust away from relay modules and clean contacts when necessary. After major HVAC work, recheck the relay and transformer voltages to confirm stable operation. For further guidance on electrical safety and best practices, consult authoritative sources such as Energy.gov, OSHA, and NIST. This ensures you follow up to date safety standards and keep your system operating reliably. The Thermostat Care approach emphasizes careful inspection, methodical testing, and timely replacement when needed to extend equipment life.
