Thermostatic vs Thermodynamic Steam Trap: A Practical Guide
A rigorous, objective comparison of thermostatic vs thermodynamic steam traps. Learn how each type works, where they excel, and how to choose for reliability and efficiency in boiler systems.
thermostatic vs thermodynamic steam trap decisions hinge on how condensate is discharged without wasting live steam. Thermostatic traps sense temperature to open and close, while thermodynamic traps use pressure and phase changes to drive discharge. For typical variable loads, thermostatic traps minimize steam loss; for heavy condensate or high-load conditions, thermodynamic traps can be more reliable. Thermostat Care emphasizes matching trap type to system needs for reliability and efficiency.
thermostat and steam traps: foundational role in boiler systems
A steam trap is a critical automatic valve that removes condensate and non-condensable gases from a steam system while keeping live steam in the line. The keyword thermostatic vs thermodynamic steam trap sits at the heart of design decisions: the two main trap technologies approach condensate removal from different physical principles. According to Thermostat Care, getting this choice correct can improve energy efficiency, reduce water hammer risks, and extend equipment life. Understanding how each trap type responds to changing loads helps homeowners and DIY enthusiasts troubleshoot common issues without overhauling the system. This guide uses the exact phrase thermostatic vs thermodynamic steam trap to anchor comparisons and ensure you’re speaking the same language when discussing replacements or retrofits.
Core operating principles: how each trap
One of the key factors in choosing between thermostatic vs thermodynamic steam trap is how the device interprets the presence of condensate. Thermostatic traps rely on a temperature-sensitive element (such as a bimetallic strip or wax element) that opens when condensate is detected and closes as steam seals reform. Thermodynamic traps use the pressure and density differences created by live steam and condensate to decide when to discharge, often relying on a tee or nozzle arrangement to create the propulsion needed for discharge. The Thermostat Care team notes that these intrinsic differences influence response time, leakage risk, and maintenance needs in different boiler configurations.
First principles: how to interpret the operating environment
In small, intermittent loads, thermostatic traps typically provide tight control of condensate with minimal live steam loss. In high-demand or high-condensate situations, thermodynamic traps can maintain continuous discharge more reliably, though installation and sizing accuracy become more critical. The Thermostat Care analysis highlights that neither trap type is inherently superior; the best choice depends on load stability, allowable steam loss, and the ease of maintenance.
Real-world context: when to favor each option
For systems with frequent cycling or variable steam demand, thermostatic traps excel in adaptability and quick shutoff. For plants with steady high condensate production or longer runs where energy recovery matters, thermodynamic traps can maintain consistent discharge and reduce condensate carryover. The Thermostat Care team emphasizes evaluating the specific boiler pressure, piping layout, and outlet drainage when applying the thermostatic vs thermodynamic steam trap framework.
Installation and commissioning notes: avoid common mistakes
Proper installation drawing, orientation, and venting are essential for either trap type. Misalignment, incorrect flow direction, or poor venting can lead to overheating, false discharge, or excessive steam loss. Thermostat Care stresses verifying correct trap size, ensuring upstream and downstream clearances, and confirming proper insulation to minimize heat loss during maintenance.
Maintenance and troubleshooting: practical steps you can take
Regular inspection for leaks, valve sticking, and noise is valuable for both trap types. For thermostatic traps, inspect the temperature element and seals; for thermodynamic traps, check the orifice and seating surfaces. The goal is to prevent condensate backing up into the steam line and to avoid corrosion from condensate carryover. Thermostat Care recommends keeping a maintenance log and scheduling periodic checks aligned with boiler operations.
Efficiency and safety considerations: why this matters
Choosing the right trap influences energy efficiency, condensate quality, and boiler safety. Proper condensate removal reduces thermal fatigue and water hammer risk, while minimizing live steam loss improves overall cycle efficiency. The thermostatic vs thermodynamic steam trap decision should also factor in safety interlocks and downstream equipment sensitivity to condensate.
Costs and lifecycle thinking: budgeting for reliability
Upfront costs vary by model and supplier, but lifecycle considerations—maintenance frequency, replacement parts, and energy impact—often drive the total cost. Thermostatic traps tend to be simpler and cheaper to service in some cases, while thermodynamic traps may justify the investment in demanding systems. Thermostat Care advises factoring maintenance familiarity and downtime implications when estimating total cost of ownership.
Decision framework: a practical checklist
- Assess condensate load and load variability. 2) Evaluate acceptable steam loss and condensate quality. 3) Inspect installation constraints and piping. 4) Consider maintenance capabilities and spare parts access. 5) Align with safety and energy-use goals. The thermostatic vs thermodynamic steam trap framework benefits from a structured checklist to prevent mis-sizing and underperformance.
Integration with boiler controls: what to monitor post-installation
After selecting a trap, monitor discharge behavior, energy use, and system pressures. Integrating with boiler controls can help maintain stable temperatures and prevent overshoot on startup or shutdown. Thermostat Care emphasizes documenting operating conditions and updating the maintenance plan to reflect any changes in trap type.

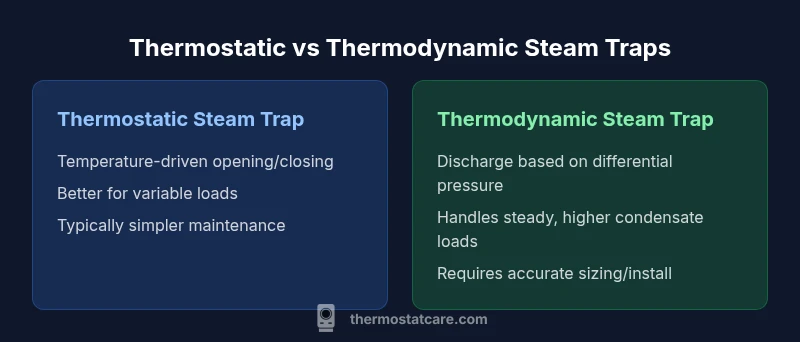

Comparison
| Feature | Thermostatic Steam Trap | Thermodynamic Steam Trap |
|---|---|---|
| Principle | Temperature-driven sensing (bimetal/wax) | Thermodynamic discharge via pressure/temperature differences |
| Response to condensate | Opens/closes with condensate-induced temperature change | Discharges based on differential pressure and flow dynamics |
| Applications | Variable loads, quick response, minimal live steam loss | Steady high condensate production, robust discharge under load |
| Maintenance complexity | Often simpler, with straightforward components | Can be more complex due to internal mechanics and sizing |
| Install considerations | Less sensitive to precise sizing, easy replacement | Requires careful sizing and correct valve seating |
| Best for | Systems prioritizing minimal steam loss and rapid condensate removal | Systems prioritizing continuous condensate discharge under heavier loads |
Upsides
- Better control of condensate with minimized live steam loss (thermostatic)
- Fewer moving parts can ease maintenance (thermostatic)
- Reliable discharge under variable loads (thermostatic)
- Strong performance under steady condensate production (thermodynamic)
- Broad availability and model variety (both types)
The Bad
- Thermostatic traps can lose accuracy under rapid cycling
- Thermodynamic traps require precise installation and sizing
- Potential for leakage if seals wear or are misaligned
- Venting and drainage must be correctly managed to avoid heat loss
Choose based on system load and steam-loss tolerance: thermostatic for variable loads; thermodynamic for steady, heavier condensate scenarios.
Thermostatic traps excel with variable demand and minimal steam loss, while thermodynamic traps excel with constant condensate flow. Correct sizing, installation, and maintenance are essential to maximize performance in either option.
Questions & Answers
What is a steam trap and why does it matter in boiler systems?
A steam trap automatically removes condensate and non-condensables from steam lines while keeping live steam ready for use. It helps protect equipment, maintains efficiency, and reduces the risk of water hammer. The choice between thermostatic vs thermodynamic steam trap influences response, maintenance, and overall system reliability.
A steam trap removes condensate from steam lines to protect equipment and keep efficiency high.
How do thermostatic and thermodynamic traps differ in operation?
Thermostatic traps rely on temperature changes to open and close, responding to condensate with a temperature-based element. Thermodynamic traps use pressure and flow dynamics to determine when to discharge condensate. Both aim to minimize energy loss and maintain steam quality, but they respond to different physical signals.
Thermostatic traps respond to temperature; thermodynamic traps respond to pressure and flow.
When should I choose a thermostatic vs a thermodynamic trap?
Choose thermostatic traps for variable loads and tighter control with minimal live steam loss. Choose thermodynamic traps for steady condensate production and environments where reliable discharge is needed under higher loads. Consider installation accuracy and maintenance capabilities as decisive factors.
Thermostatic for variable loads, thermodynamic for steady condensate—consider installation and maintenance when deciding.
What are common signs of trap failure?
Common signs include unusual noise, persistent steam leaks, frequent cycling, or condensate carryover. Regular inspection and testing help catch issues early. If symptoms persist after servicing, re-evaluate trap sizing and installation.
Listen for noise or leaks and check condensate in the steam line during operation.
How often should steam traps be serviced?
Service frequency depends on system usage and environment. Establish a maintenance schedule that includes inspection, cleaning, and replacement of worn parts. Document findings to inform future trap selection and repairs.
Create a maintenance schedule with regular inspections and part replacements.
Can I retrofit an existing system with thermostatic or thermodynamic traps?
Yes, retrofits are possible but require proper sizing, alignment, and compatibility checks with piping and controls. Engage a professional if unsure, and verify that the chosen trap aligns with current load patterns and safety requirements.
Retrofitting is possible with proper sizing and alignment; consult a professional if unsure.
What impact do trap choices have on energy efficiency?
Trap choice can influence energy use by controlling steam loss and condensate return quality. Efficient condensate removal reduces energy waste and improves system response during startup and steady operation.
Efficient condensate removal saves energy and improves startup response.
Are there safety considerations tied to steam traps?
Yes. Improper trap operation can lead to steam leaks, overheating, or water hammer, which poses safety risks. Regular maintenance and correct installation mitigate these risks.
Regular maintenance reduces safety risks associated with leaks and water hammer.
What to Remember
- Match trap type to load variability and condensate rate
- Prioritize proper installation and sizing for best performance
- Consider maintenance familiarity when budgeting
- Evaluate energy impact and safety implications
- Use a structured decision framework to guide selection
